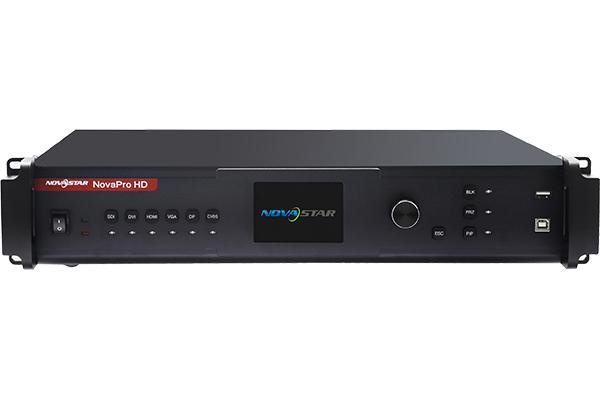

NovaPro HD all-in-1 videoprocessorLoading capacity up to 2,350,000 pixels
Max output width 3840 pixels, height 1920 pixels€ 3.435,00
Novastar MCTRL R5 ControlboxLoading capacity up to 4K×1K@60Hz
HDMI / DVI / 6G-DVI
Free Rotation led panels€ 2.599,00SALE
Novastar MCTRL4K ControlboxReal 4K @ 60Hz
Loading capacity up to 8,300,000 pixels
DP / HDMI / Dual DVI€ 4.999,00 € 4.199,00
Novastar MRV328 receivingcardSupports resolution 256x256
Gigabit Ethernet port for PC connection€ 49,00Most popular

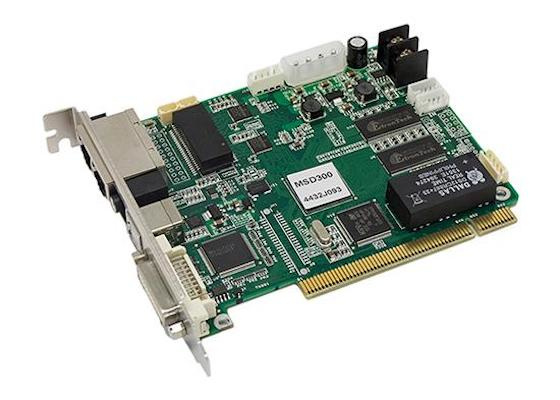

Novastar MSD300 sendercardDVI interface for video input
Resolutions supported: 1024*1200, 1280*1024, 1600*848, 1920*712, 2048*640€ 195,00Best Buy
Novastar T6 Multimedia sendercardLoading capacity up to 1,300,000 pixels
Synchronous and asynchronous dual-mode€ 425,00
Novastar TB30 (TB3) Multimedia PlayerboxLoading capacity up to 650,000 pixels
Asynchronous€ 465,00Best Buy
Novastar TB50 (TB6) Multimedia PlayerboxLoading capacity up to 1,300,000 pixels
Synchronous and asynchronous dual-mode€ 565,00
Novastar TB60 (TB8) Multimedia PlayerboxLoading capacity up to 2,300,000 pixels
Synchronous and asynchronous dual-mode€ 745,00
Novastar VX400 videoprocessorCapacity up to 2,300,000 pixels
CVBS / VGA / DVI / HDMI / DP (optional USB / SDI)
Auto fit€ 1.450,00
Controls
LED DISPLAY CONTROLS
A suitable control system is crucial for a led display. There are mainly 2 kinds of control systems on the market, synchronous and asynchronous.
Synchronous control system
Synchronous control system means the led display will show videos or images from a computer or other input source, such as DVD, camera, TV, VCR, etc. directly.
The led display needs to be connected with a PC or video processor continuously. If the connection is cut off, the led display will not show anything.
Fast data transmission is one of the advantages of a synchronous control system; the led display will display real time data from the computer (or other input source) without any delay.

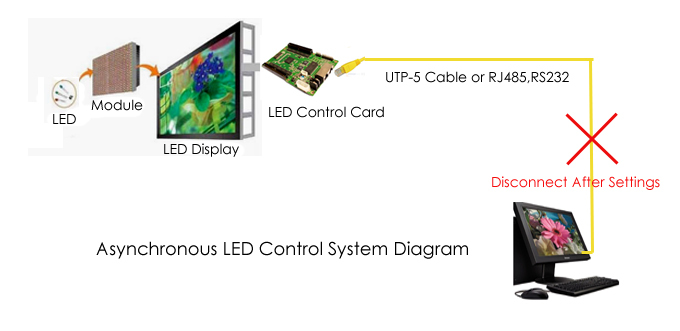

Asynchronous control system
Asynchronous control system indicates the led display will show programs from its internal memory, the led display only needs to connect with a PC to update the memory. The playlist will be edited on a computer, then send to the control card by UTP cat5, USB disk, Wifi or 3/4G connection.
When the control PC is far away from the led display, the asynchronous control system is a good choice. If the installation location is not convenient for wiring, asynchronous is a good solution too.
